• Extremely robust, torsion-resistant aluminium ‘R’ profile
• Extra-wide measuring surface for extreme stability – no tipping over during the measurement process
• Three accurate marking and cutting edges for exact marking over the full length of the profile
• Handrail with finger groove over the full length makes it easy to grip when measuring and carrying
• Coated measuring surfaces protect delicate surfaces
• Continuous bridge over the horizontal vial increases the stability of the profile
• End caps with an anti-slip stopper – for a firm seat when marking
• Shock-absorbing end caps – the two-component material mix protects the profile against impact
• Removable end caps – exact positioning and marking right up into the corners
• The ‘R’ profile shape allows construction material to be smoothed off easily
• Easy to clean
• STABILA installation technology ensures long-term accuracy – measuring accuracy in normal and reverse position of ± 0.5 mm/m
• Number of measuring surfaces: 2
• End caps: Removable, shock-absorbing, anti-slip stopper
• Made in Germany

Equipment: 1 horizontal vial, 2 vertical vials, 2 coated measuring surfaces

Technical details

No	Dimension L x W x H mm	Weight netto kg	EAN 4005069
18371	610 x 43 x 60	0.786	+183714
18372	810 x 43 x 60	1.040	+183721
18373	1000 x 43 x 60	1.224	+183738
18374	1220 x 43 x 60	1.480	+183745
18375	1830 x 43 x 60	2.174	+183752
18450	2000 x 43 x 60	2.340	+184506
18376	2440 x 43 x 60	2.866	+183769

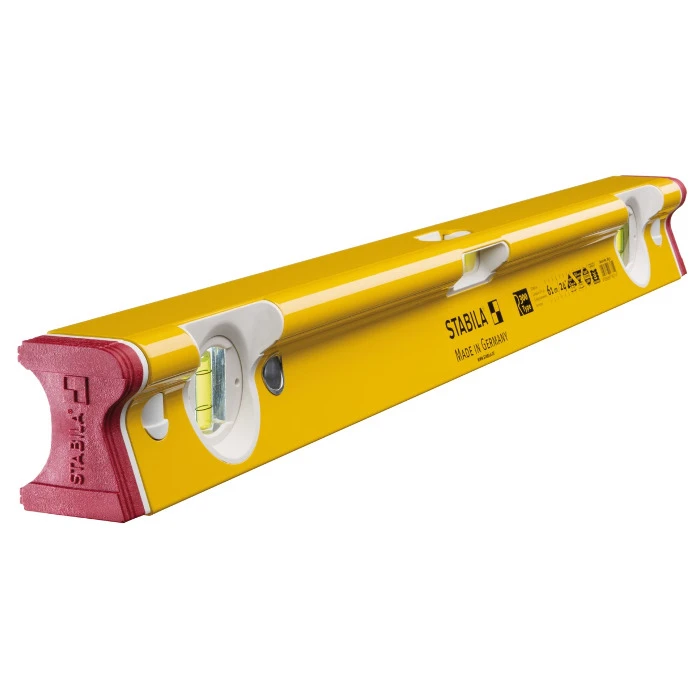

Please note: The image shows a representation only and is provided by STABILA.
