• Compact electronic spirit level for measuring inclinations, slopes and angles
• Acoustic guidance with 3 different audible signals to align components quickly without having to look at the spirit level
• Clear front display – the display rotates in reverse position
• Reference angle mode allows an angle measurement to be accepted, saved and then transferred to other components
• Display modes: °, %, mm/m, ft/in – decimal and as fraction
• Protection class IP 54: protection against dust deposits inside and against spray from all directions
• At 0° and 90°, the accuracy of the electronic inclination measurement is ± 0.05°, and from 1° to 89° it is ± 0.2°
• STABILA installation technology ensures long-term accuracy when measuring with the spirit level vials
• Measuring accuracy in normal position ± 0.5 mm/m, in reverse position ± 0.75 mm/m
• Made in Germany

Application examples:

• Especially suitable for taking exact measurements in carpentry and joinery and in kitchen and stair installation
• Ideal for architects to check completed work, e.g. for checking the slope of a balcony

Technical details

No	17323
Measurement accuracy in normal position	0.50 mm/m
Measurement accuracy in reverse position	0.75 mm/m
Accuracy with electronic inclination measurement at 0° and 90° +/-	0.05°
Accuracy with electronic inclination measurement at 1° to 89° +/-	0.20°
Measuring modes	°, %, mm/m, inch/ft
Number of measuring surfaces	1
End caps	Standard
Dimension L x W x H mm	300 x 50 x 30
Weight netto kg	0,314
EAN	4005069173234

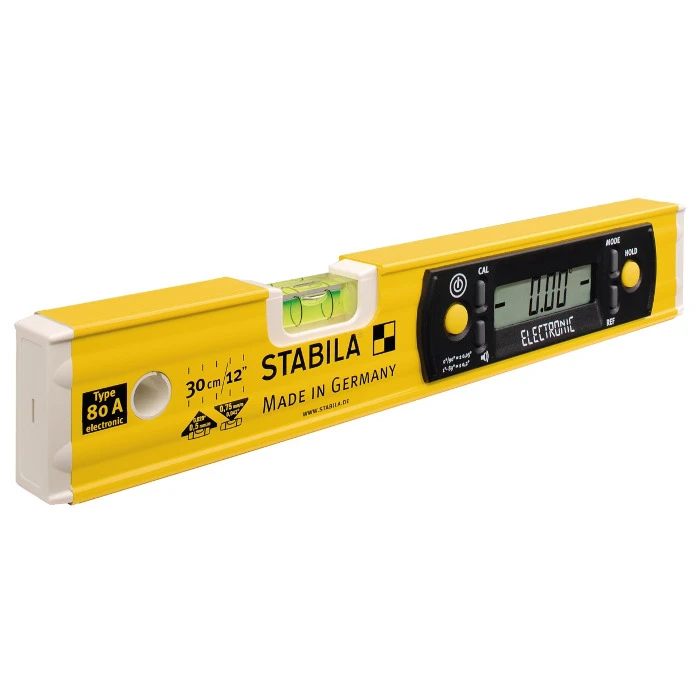

Please note: The image shows a representation only and is provided by STABILA.
