• Pliers on self blister card
• Narrow handle width and improved ergonomics
• For crimping wire end sleeves according to DIN 46228 parts 1 + 4
• Self-adjustment to the size of wire end sleeves required
• Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
• Tools have been set precisely (calibrated) in the factory
• Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
• Handy shape and low weight provide high operation comfort
• Square compression now additionally also for wire end sleeves up to 16 mm²
• Square compression for ideal contact surfaces in the clamp connection
• Suitable in particular for all twin wire end sleeves up to 2 x 6 mm² or 2 x AWG 8
• Hexagonal-crimp automatic
• with opening spring
• Handles: with multi-component grips
• Surface: burnished
• Material: Chrome vanadium electric steel in special quality, oil-hardened
• Made in Germany

Technical details

No	97 53 04 SB
L mm	180,0
Capacity in square millimetres	0.08 – 10 / 16 mm²
AWG	28 – 5
Application	Wire end sleeves
Number of crimping positions	1
EAN	4003773030270

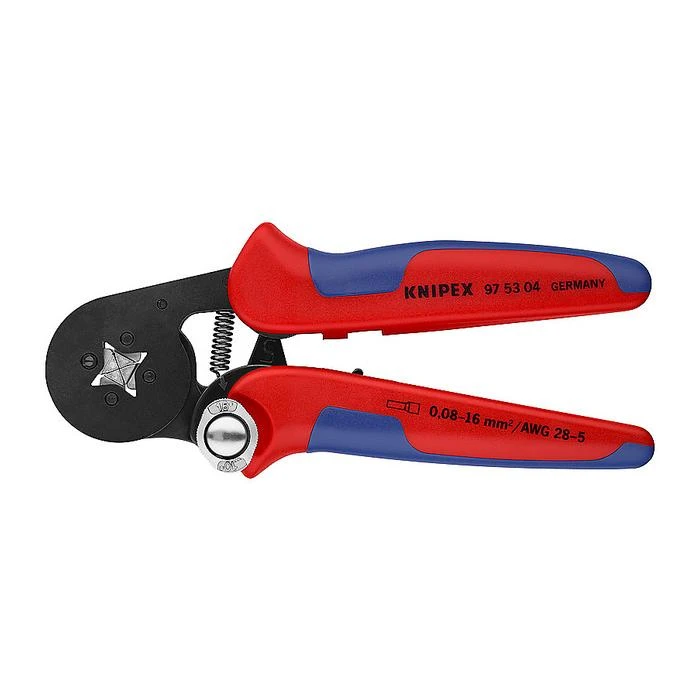

Please note: The image shows a representation only and is provided by Knipex.
