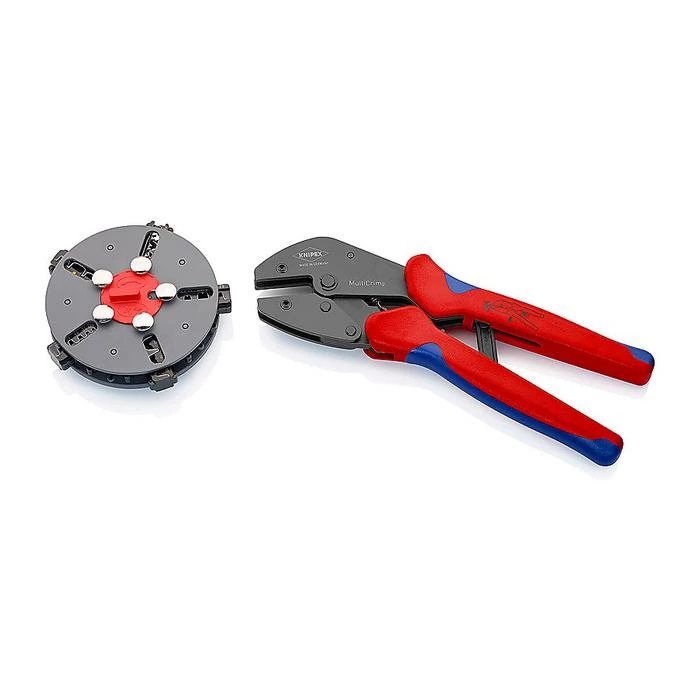

KNIPEX 97 33 02 Crimping Pliers MultiCrimp®, 250 Mm

• Lever Action Crimping Pliers with changer magazine
• The crimping dies 97 49 xx for the Crimp System Pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02
• Just one tool for the most common crimping applications
• Crimping dies changed quickly and easily without any additional tool
• Sorted and protected storage of the interchangeable dies in a round magazine
• Comfortable, powerful crimping pliers in professional quality
• Same reliable crimping results as with fixed crimping dies
• Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable)
• with five crimping dies in a magazine
• Crimping pressure calibrated in the factory
• Material: Manufactured from high-grade chrome vanadium electric steel, oil-hardened
• Surgace: burnished
• Handles: multi-component grips
• Made in Germany

Technical details

No	97 33 02
L mm	250.0
Capacity in square millimetres	0.25 – 10.0 mm²
Number of crimping positions	3
AWG	20 – 10
EAN	4003773066934

Content/List of tools:

• Number of tools (set): 6 pieces
  • MultiCrimp® Crimping pliers No. 97 33 02
  • Crimping die 97 39 05 for non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
  • Crimping die 97 39 09 for insulated and non-insulated wire ferrules
  • Crimping die 97 39 06 for insulated terminals, plug connectors and butt connectors
  • Crimping die 97 39 08 for insulated and non-insulated wire ferrules
  • Crimping die 97 39 13 for non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267
  • Changer magazine 97 39 90 empty

Please note: The image shows a representation only and is provided by Knipex.
