KNIPEX 13 66 Insulation stripper StriX®, 180 mm
- For single, multiple and fine stranded conductors with plastic or rubber insulation up to 5.0 mm dia. or 10 mm² cable cross-section
- Increments in the jaw provide a visual orientation aid for stripping consistent lengths (11 mm and 16 mm)
- Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
- Shear blade for cutting copper and aluminium cable up to Ø 15 mm (5 x 2.5 mm²)
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
- High-grade special tool steel. forged. oil-hardened
- Handles: insulated with multi-component grips, VDE-tested
- Insulation standard: IEC 60900 DIN EN 60900
- Surface: chrome-plated
- Made in Germany
Information about “SB” in the article number: You will receive the same size of the pliers with a blister or self paper card with hanging holeInformation about “T” in the article number: Pliers with safety lug for attaching to a fall arresterInformation about “BK” in the article number: You will receive the same size of the pliers with a plastic blister with hanging hole
Technical details
| Stripping capacities in mm² | AWG | Stripping capacities ø mm | EAN 4003773 | ||||
| 13 66 180 | 7 | 15.0 | 50.0 | 10.0 | 8.0 | 5.0 | +081319 |
| 13 66 180 SB | 7 | 15.0 | 50.0 | 10.0 | 8.0 | 5.0 | +081333 |
| 13 66 180 T | 7 | 15.0 | 50.0 | 10.0 | 8.0 | 5.0 | +081906 |
| 13 66 180 T BK | 7 | 15.0 | 50.0 | 10.0 | 8.0 | 5.0 | +081982 |

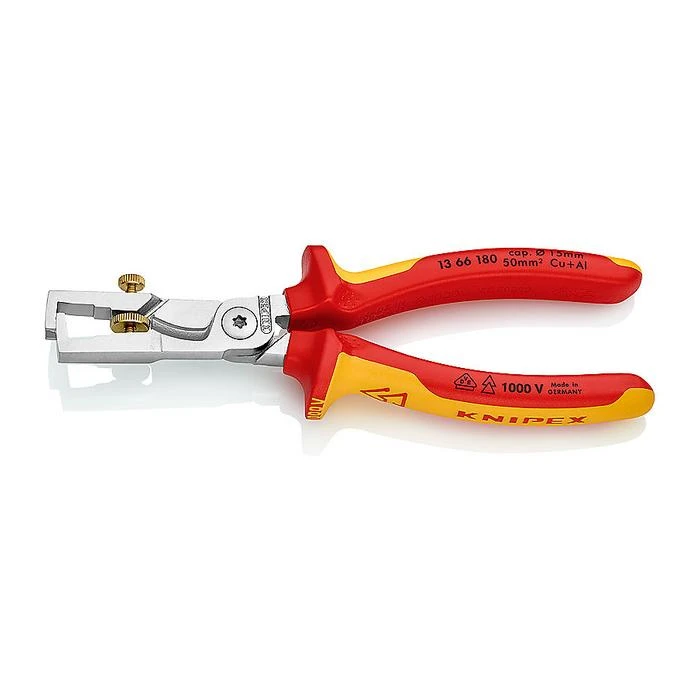

Please note: The image shows a representation only and is provided by Knipex.
