KNIPEX 09 15 240 Lineman`s Pliers, 240 Mm

• American style
• High transmission ratio for easy cutting
• Requires 50 % less effort compared with conventional combination pliers thanks to optimised transmission ratio
• With fish tape puller in the joint gap
• With universal mandrel crimping point below the joint
• Solid construction for heaviest strain; universally applicable
• Ergonomically optimised handle shape for firm contact to the hand and fatigue reducing operation
• Particularly effective cross-hatched knurled gripping zone in the jaws – for strong gripping and pulling
• Additional gripping zone below the joint for powerful leverage and pressing performance
• With cutting edges for soft and hard wire
• Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
• Material: Vanadium electric steel, forged, multi stage oil-hardened
• with dorn crimp
• Handles: with multi-component grips
• cross-hatched, knurled gripping surfaces
• Cutting edges with bevel
• Surface: chrome plated
• DIN ISO 5746, ASME B107.20
• Made in Germany

Technical details

No	09 15 240
L mm	240.0
ø mm	4.6
ø mm	3.0
EAN	4003773087397

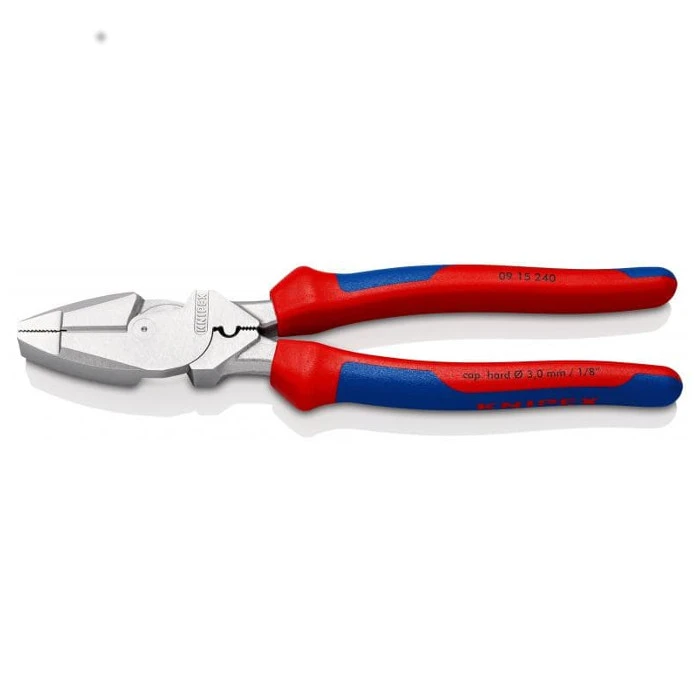

Please note: The image shows a representation only and is provided by Knipex.
