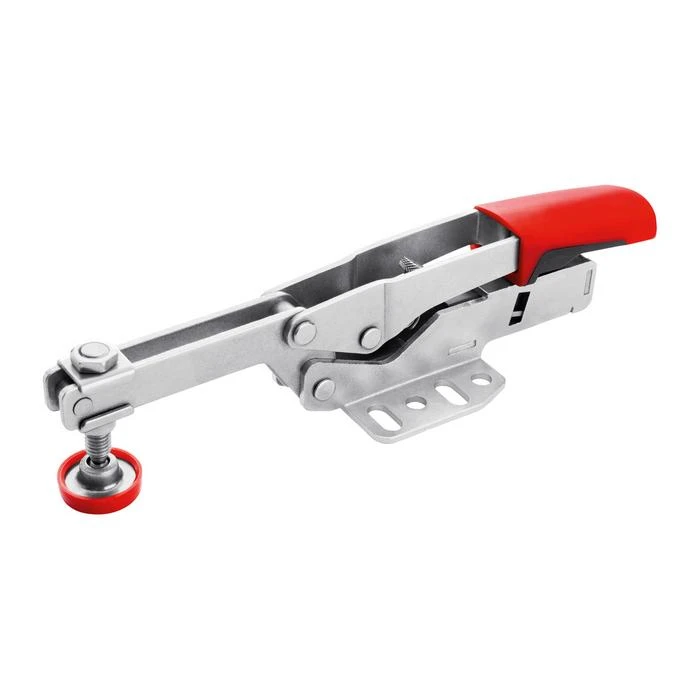

BESSEY Horizontal toggle clamp with open arm and horizontal base plate STC-HH – /40 –

• In the clamped position, the lever is horizontal
• Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged – without having to make manual changes to the position of the pressure screws
• Clamping force is variable up to 2,500 N depending on the adjustment of the set screw in the cantilevered joint
• Sturdy, tempered metal sheets for a long service life
• Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial
• High-quality oil resistant two-component plastic h

Technical details

No	STC-HH50SB
Opening	40 mm
Automatic adjustment	35 mm
Clamping pressure	2,500 N
Weight approx.	0.38 kg
PU	3 qty.
EAN	4008158036755

Please note: The image shows a representation only and is provided by BESSEY.
